32-75inch Outdoor Full-Face IP66 Slim Wall Mount Digital Signage DOOH

32-75inch Outdoor Full-Face IP66 Slim Wall Mount Digital Signage DOOH

 Display

* Adopt outdoor special high brightness LCD screen, brightness 1000-3000nit, visible under strong light, design life 50000 hours .

* High-definition picture quality, screen resolution: 1920X1080 or 3840X2160.

* High dynamic contrast ratio, clearer picture, viewing angle 178°.

* Intelligent light-sensitive system, can automatically adjust the screen brightness according to the environment, users can watch programmes clearly/comfortably at different moments to protect the eyes.

* Intelligent colour calibration, automatic calibration of contrast colours or manual fine-tuning, presenting a perfect picture.

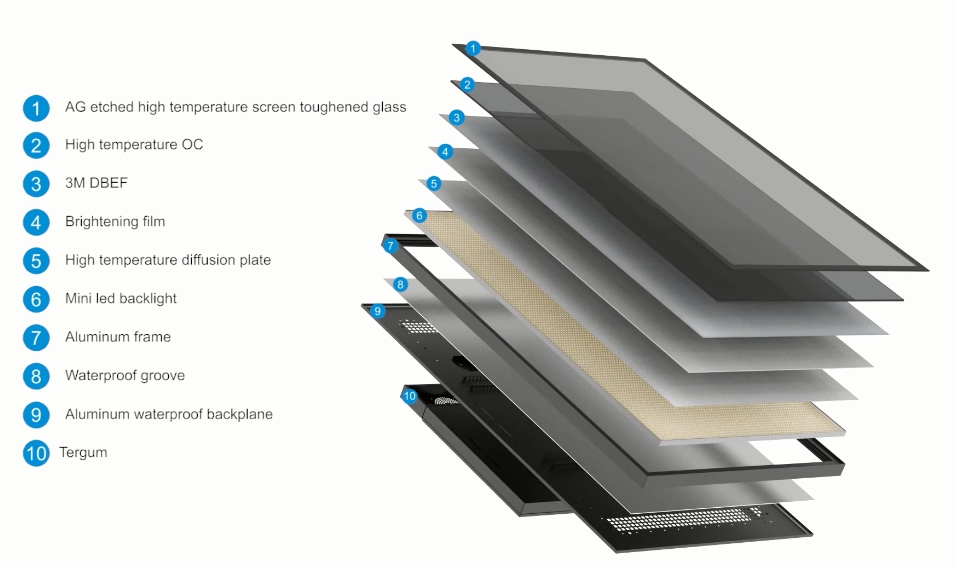

1 . Structure

1.1 Shell design: the shell is made of 1.0-1.5mm aluminium plate, the first in the industry, spray Akzo outdoor special powder, outdoor corrosion for more than 7 years.

1.2 Waterproof design: the shell structure of the fully enclosed design, control box design waterproof groove and waterproof labyrinth, to meet the IP66 protection level.

1.3 Dustproof design: the shell structure is fully sealed design, dust can not enter the machine.

1.4 High-transparency glass: 5mm AG etched toughened glass is used as the protective glass in front of the whole machine. Reduce reflection.

1.5 Maintenance: the whole machine adopts modular design, easy to install and maintain.

1.6 Anti-theft design: The base/hanger adopts internal locking design, preventing the machine and equipment from being removed from the outside screws to move the machine, which is really safe and anti-theft.

1.7 Mounting bracket: The whole machine is designed with mounting holes for fixing on the wall or other objects, which can be customised according to customer's requirements, with all the accessories, and the machine can be installed by directly punching the holes upon receipt.

2.Electronic structure

1 Product selection of well-known manufacturers of intelligent industrial control motherboard, stand-alone / Android / industrial computer motherboard can be selected, the default Android dual-core. Support remote and local programme management (optional).

2 Adopt waterproof IP67 outdoor power supply of international famous brand, applicable to the voltage of different countries around the world, safe, stable, long life, high energy efficiency value.

3 Built-in leakage protector, lightning protection and other configurations, all-round safety protection .

4 Configuration of accurate timer, two choices of Chinese and English, can be repeated many times to set, according to the day, week, month timer on and off.

5 over-temperature protection: when the internal temperature of the machine is high, the system will reduce 30% of the output power of the power supply board to keep the device does not appear black screen, when the temperature drops, the power supply power will be normal output. When the temperature drops, the power supply power will be output normally to protect the LCD screen, motherboard and other major components.

3.Electronic function

1.Android system

Optional well-known manufacturers A20, A83, 3188, 3288 and many other motherboards, high performance. Default A20 dual-core 1+8G , support 2+8G, 2+16G, 2+32G and other optional configurations.

Can support Android 4.4 or 5.0 version. Support Bluetooth 4.0 version.

Memory: 1G/2G Built-in storage: 8G/16G/32G

Decoding resolution: support 1920*1080 and above resolution.

Playback mode: support cycle, timing, plug and play, split-screen partition playback, support for multimedia material any combination of playback and other playback modes

Network support: Ethernet, optional wireless peripheral expansion, optional 3G/4G module)

Video playback: WMV, AVI, FLV, RM, RMVB, MPEG, TS, MP4, VOD, MOV, MKV, MP3, AAC and other formats.

Picture formats: support for JPEG, PNG, GIG, BMP, etc.

File formats: TXT, PPT, WORD, ECELE and so on.

Video Output: Support LVDS format video output.

Audio output: support HDMI high-definition video output, left and right channel output, built-in 2 * 5W high-quality audio.

Optional support for information dissemination system: RTC real-time clock, timer boot, U disk update playlist, U disk network upgrade, remote control.

2.X86 computer version of the system

CPU: Intel I3/I5/I7/1900 (optional)

Memory: 2G/4G/8G

Hard drive: mechanical hard drive 500G/1000G, solid state drive 64G/128G/256G

Operating system: WINDOWS7/10 in English and Chinese systems, LINUX Ubuntu system

Decoding Resolution: Support 1920*1080 and above resolution.

Network support: Ethernet (optional 2-way), optional wireless peripheral expansion, optional 3G/4G module

Video: support HDMI, VGA format video output

Audio: left and right channel output, built-in 2X5W high quality audio.

Peripheral support: can support 4XUSB, 2X serial port (optional 6), 2XSATA interface

Optional support for information distribution system: RTC real-time clock, timed boot, U disk update playlist, U disk network upgrade, remote control.
