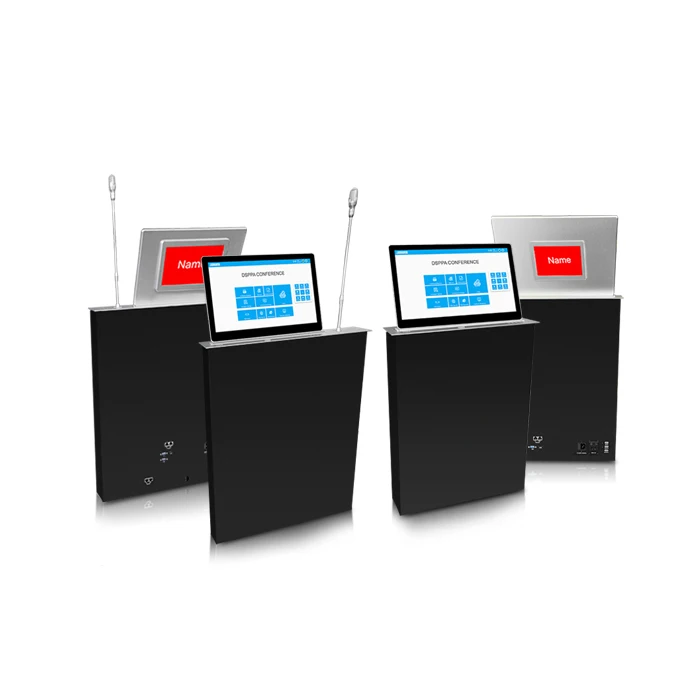

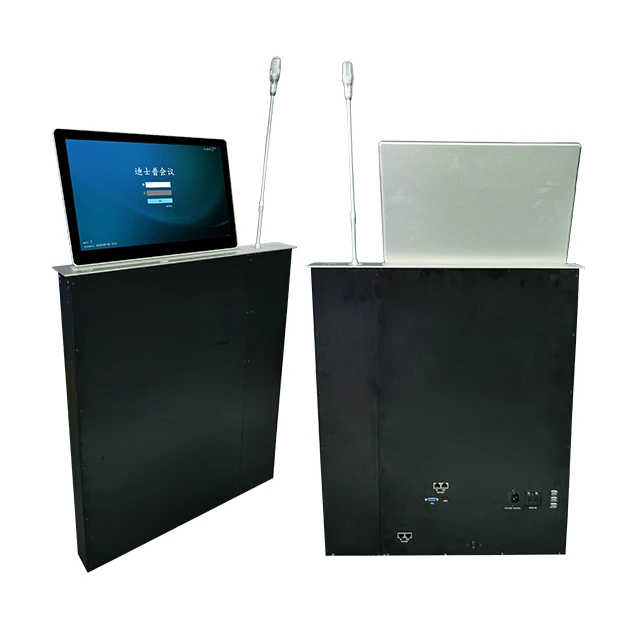

Concealed conference monitor microphone terminals
● With waterproof driver inside
● Support1920*1080 resolution
● Support 1 channel HDMI inputs and 1 channel VGA inputs
● Installed with DSPPA Paperless Conference System software
● Paperless Conference System with lifting monitor & microphone terminal Ultra-thin HD touch screen,integrated withconference terminal and lifter
● No exposed cable,no connection backplane,no external screw
● Use the aluminum alloy structure,and the surface is an anodized treatment
● Intelligent conference lifting terminal,supports HDMI/VGA signal input
● Support for grouping or centralized control throughcentral control and software,one-click all equipment rising, drop or stop
● Desktop panel with USB interface,upload meeting files or browse files and sharing
● Using an embedded electric lift system,the front andrear elevation angle is adjustable from 0-30
● Support high-resolution IPS LCD screen,support full-screen touch,slip screen, drag, zoom view conferencing information
● Using low-power design,heat dissipation,support forstandby hibernation
● Display size:15.6 inch/17.3 inch /18.5 inch
Model No. | D7615PT/D7617PT/D7618PT |
Terminal Display Screen Size | 15.6" /17.3" /18.5" HD Screen |
Horizontal FOV (°) | 0~176° |
Vertical FOV (°) | 30~150° |
Screen Ratio | 16:9 |
LCD Screen Resolution | 1920*1080 |
Touch Technology/Surface Hardness | Condenser/Moh’s level 7 |
Touch Points/Sensing Force | 10 points/< 7g |
Touch Response Time | 5ms |
Display Lifting Angle | Auto mechanical adjustment 30° |
Input Interface | VGA*1, HDMI*1, central control interface*1, USB*2, switch interface*1 |
Output Interface | Central control interface*1, power output interface*1, microphone output |
Lifting Microphone | Asynchronous lifting |
Frequency Response | 100~20K |
THD | <0.5% |
Input Sensitivity | 35mv |
Lifting Terminal Panel Interface | With USB*1 and USB dust cover |
Enclosure Material | Aluminum alloy |
Color | Black/Silver |
Power Requirement | AC220/50Hz |
Power Consumption | 100W |
Working Temperature | -10℃~45℃ |
Working Humidity | 10%~95% |
Installation Method | Embedded electric lifting installation |
