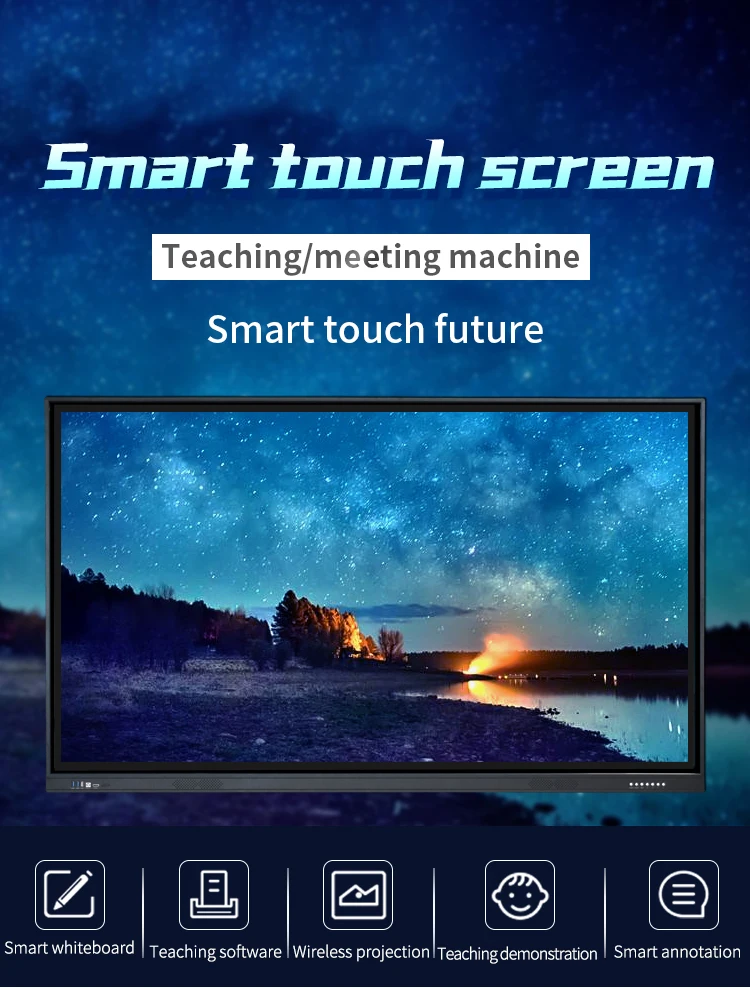

LCD touch screen all-in-one multi-functional dual system interactive whiteboard for company conference and meetings
Main features: LED LCD screen, 4K HD, infrared multi-touch, windows+andriod dual system, wireless projection; Equipped with Android 6.0 smart operating system, internal cache capacity 2G + storage capacity 16G;
Built-in 2.4G/5.8G dual-band signal, dual network cards, support wireless Internet access and WIFI hotspot simultaneous use;
Built-in mobile phone and computer wireless on the same screen, multiple channels on the same screen, realizing mirroring counter-control, remote snapshots, etc.;
Aluminum alloy frame, surface brushed and anodized, iron case back cover, active heat dissipation;

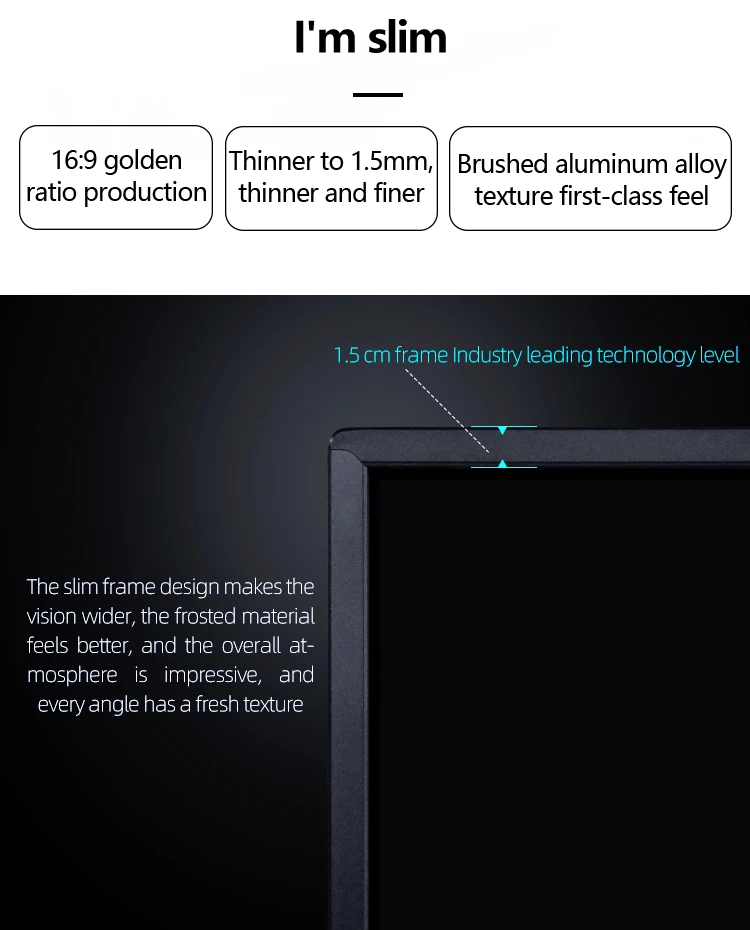

Ultra-narrow brushed face frame, ultra-narrow design, the whole face frame is only 12MM per side;
4mm physical tempered vandal-proof high-permeability glass with hardness up to Mo type 7;
High-speed 10-point infrared touch, built-in meeting whiteboard function, faster writing speed, best writing experience;
Use the OPS slot of the international general standard, integrated plug-in design, easy to upgrade and maintain, there is no visible connection line of the computer module outside, the body is beautiful.
Computer module adopts intel Core series processors, and you can choose I3/I5/I7 first to ninth generation processors;

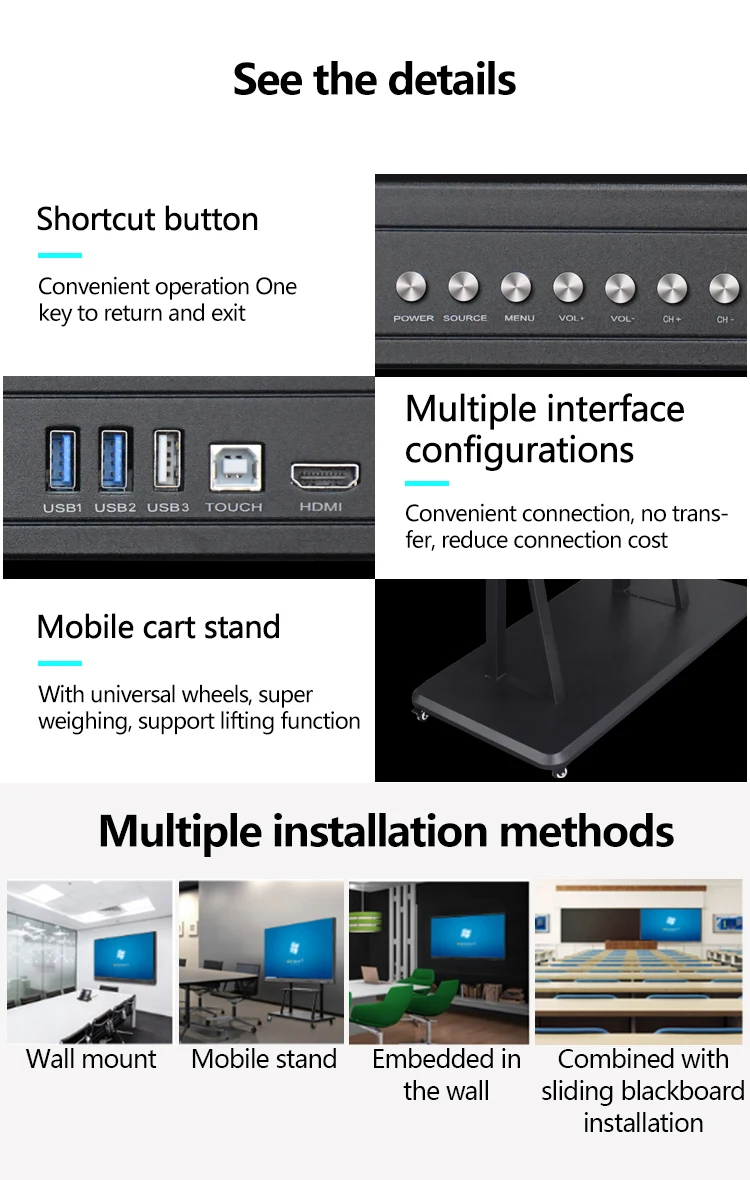

One button switch on the front front, three in one, convenient operation;
Front front expansion ports: 1 USB3.0, 1 USB2.0, 1 HDMI, 1 Touch, 1 remote control window;
The Android motherboard and PC in the machine have built-in WIFI modules respectively, which is convenient for users to perform wireless transmission and network operations through WIFI;
Support side pull touch menu, support any channel writing, annotation, screenshot function; child lock function, the button function can be blocked by setting;
Color | black |
Size | 1261mm *769mm*90mm |
Weight | 30KG±1.5KG |
Packing size | 1395（L）*215（T）*890（H）mm |
With packaging weight | 35KG±1.5KG |
System | windows7/windows10 android6.0 CPU intelcoreI3/I5/I7 CORTEX A53 quad-core 1.5GHz
Intel integrated graphics SD card expansion128G/USB expansion 1T
RAM DDR3 4G/8G RAM DDR4 2G
SSD 128G/256SSD storage space 16G
Realtek 8111F Gigabit LAN
Built-in WIFI module |

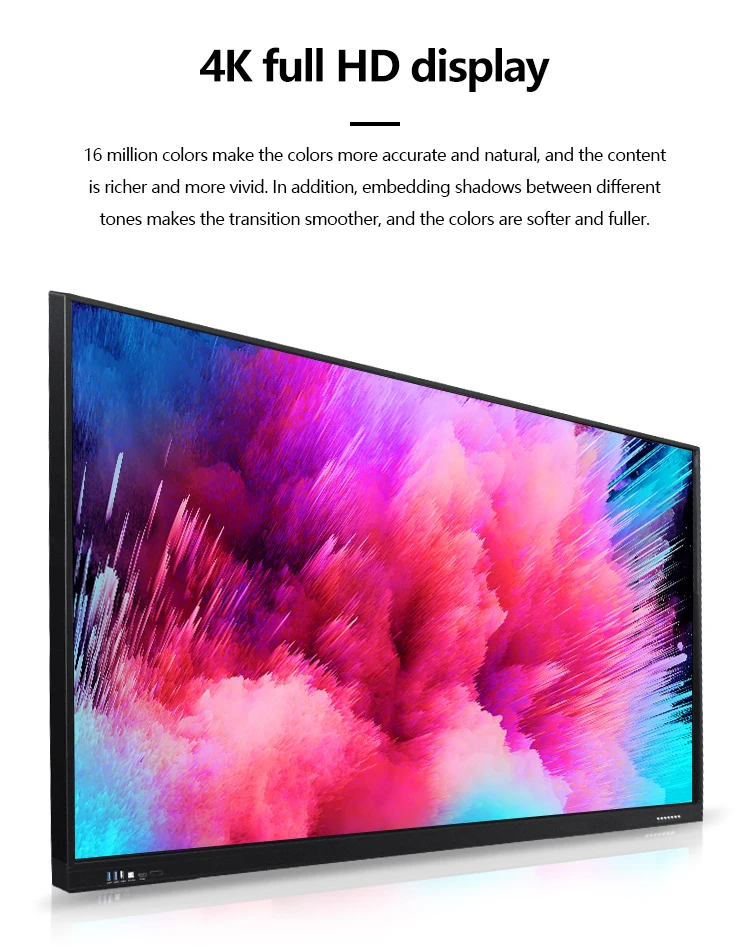

Screen | 55 inch Display area 1209(H) x 680(V)mm Pixel pitch 0.4935 mm x 0.4935 mm
Contrast ratio 1200:1
Display color 10bit, 1.07 Billion
Resolution 3840 (H) × 2160 (V) (Full HD)
Brightness 350cd/㎡
Viewing angle 178°, 178°
Response time 3.5ms
Backlight DLED
Screen life 60000 hours |
Touch parameters | Touch specifications infrared touch frame Glass specification 4mm tempered glass
Touch points windows free drive 10 points android driver 6/10 points
Resolution 32768(E)*32768(D)
Touch accuracy ±2mm
Response time 4ms~12ms
Light transmittance 90% |
Power supply | parameters Voltage 100V-200V/AC, 50-60Hz Maximum power 440W (without OPS)
OPS power supply 18V(DC)/5A
Standby parameter<0.5W
Power input AC*1 |
Environmental parameters | Working temperature 0℃ ~ 40℃ Storage temperature -10℃ ~ 60℃ Working humidity 20% ~ 80%
Storage humidity 10% ~ 80% |
Input/output interface | HDMI input interface *5 DP interface *1
VGA input interface *1
LAN interface *2
Android USB *2
PC USB*6
Public USB *1
Touch *2
PC-Audio input interface *1
HDMI output interface *1
S/PDIF output interface *1
Audio OUT *1 |
Packing list | Power cord national standard three plug 2M*1 Manual *1
Warranty card*1
Certificate of conformity *1
Remote control*1
Touch pen*1
Projector*1 (optional)
Wall bracket*1
Mobile bracket*1 (optional) |
