P2 P2.5 P3 Flooring Standing Led Display Wifi 4G Digital Outdoor Indoor Movable LED Poster

图文详情

P2 P2.5 P3 Flooring Standing Led Display Wifi 4G Digital Outdoor Indoor Movable LED Poster

Product Detail

Product Description

Advantages

1. Can be released instantly via WIFI, 3G/4G remote

2. Large-scale cluster control and management

3. Intelligent adjustment of screen brightness

4. Can send videos or pictures to interact with smart cloud screen through smart terminalAPP

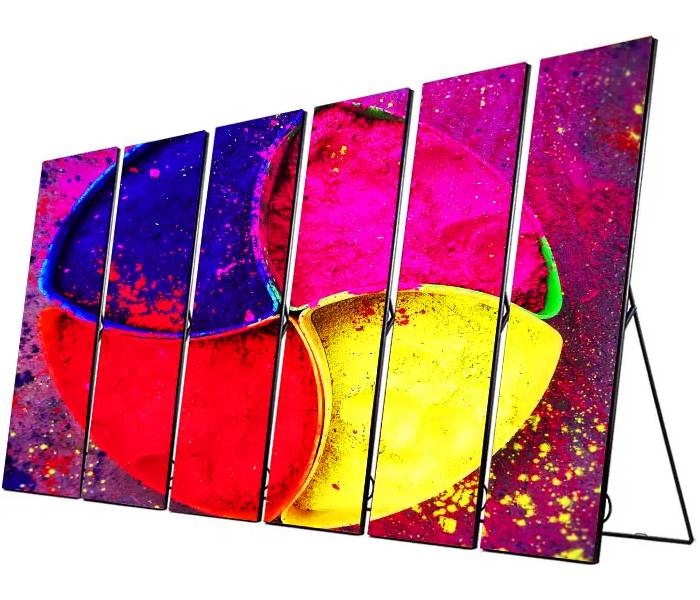

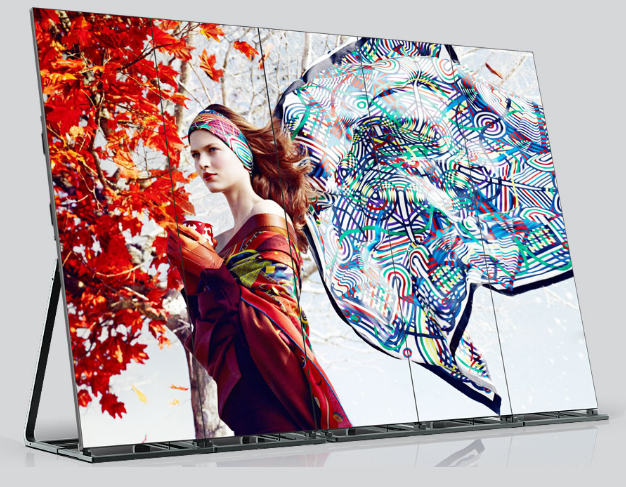

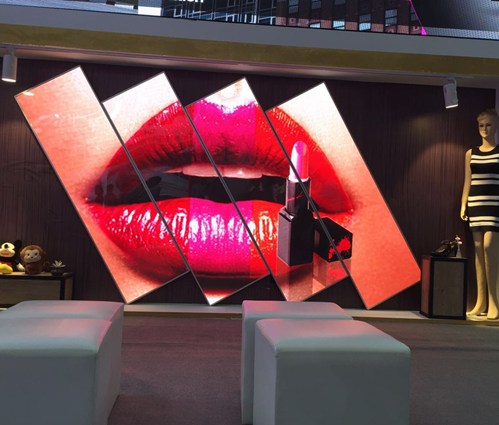

Multi Installation---SeatingCluster control

Asynchronous signal transmission

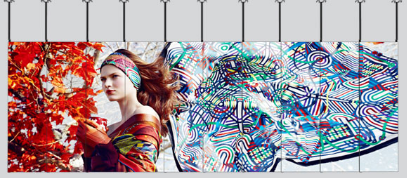

Multi Installation---Hanging

Asynchronous signal transmission

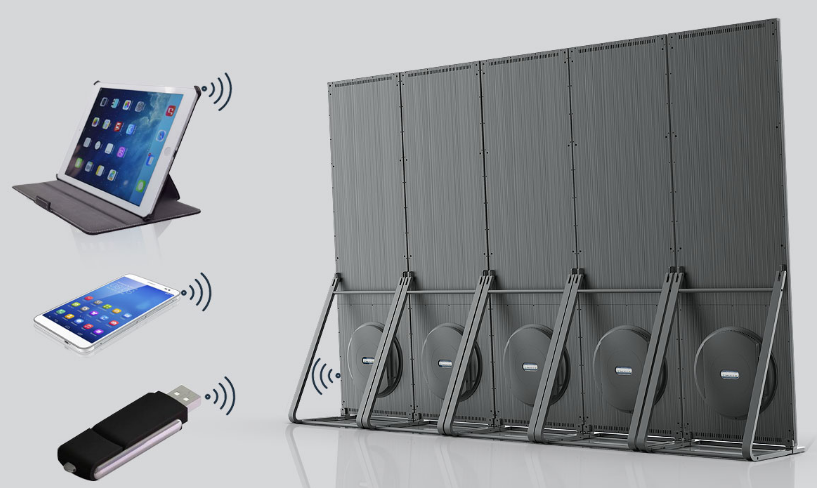

Multi Signal Access

● USB, Mobile phone,iPad
● Asynchronous signal transmission
● Plug & play

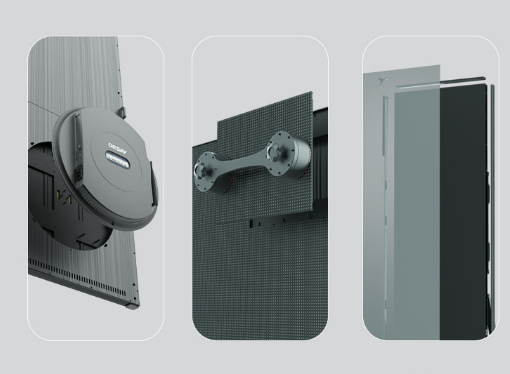

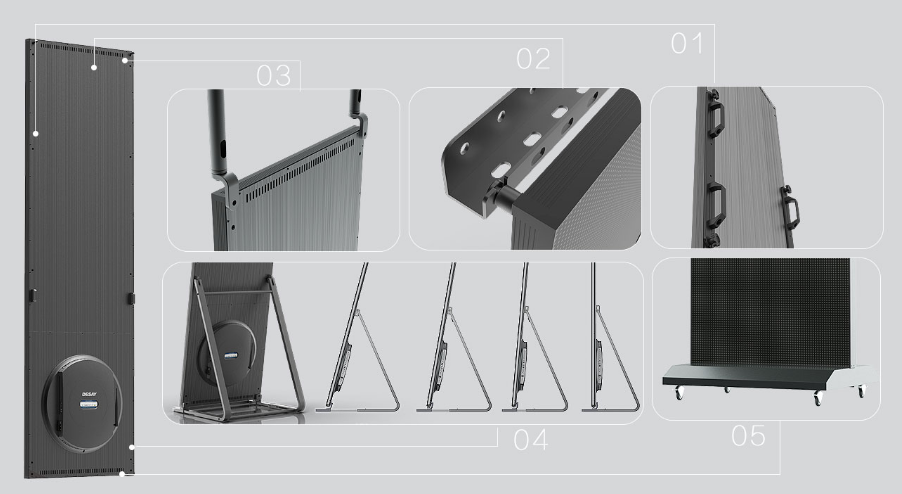

Multi Installation Mode

● Optional for handle
● Support wall mounting
● Support hanging

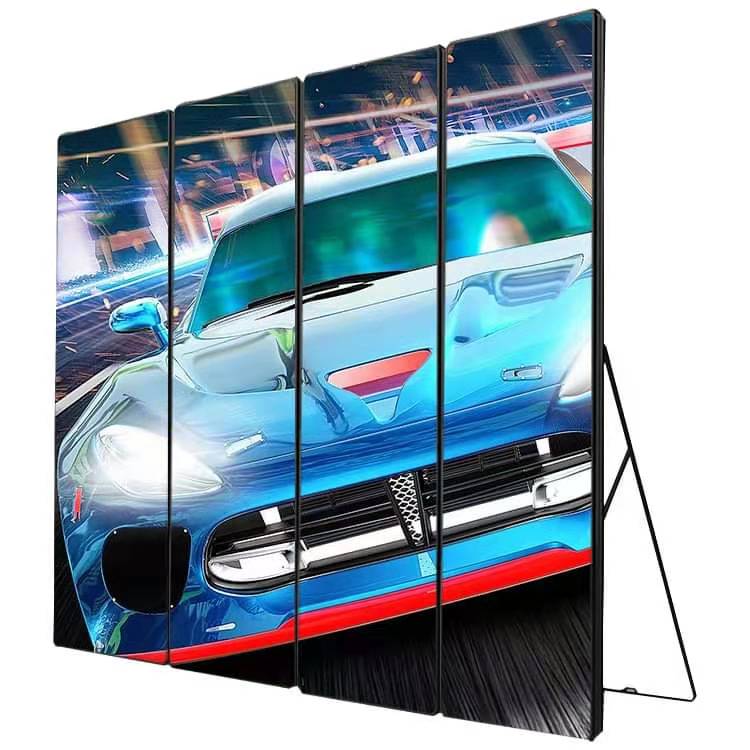

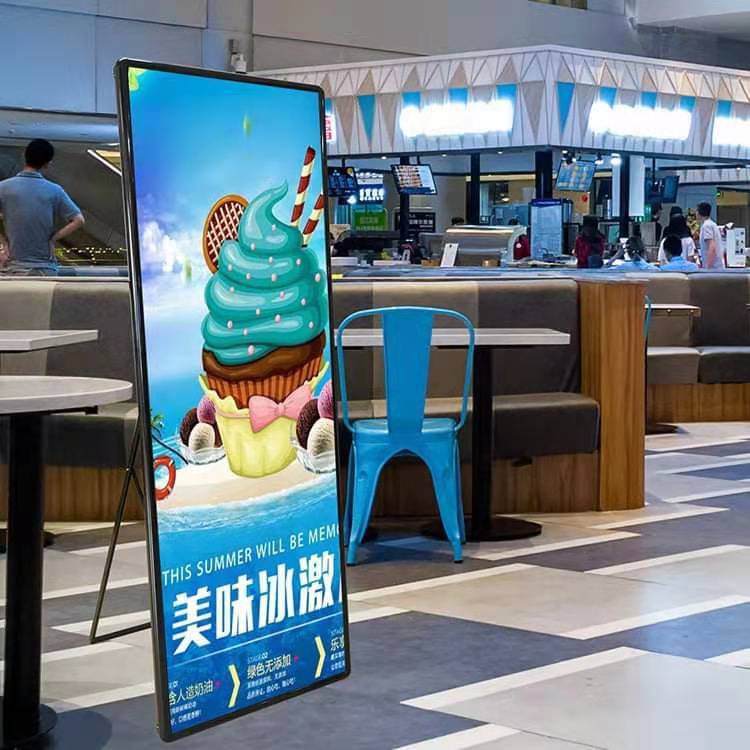

● Adjustable floor stand
● Movable double-sided poster

Maintenance

● Remove acrylic front cover
● Take away the LED module
● Twist off the rear cover to repair power supply

Specification

Model	P2.5	P2.5	P3	P3
Pixel Pitch	2.5mm	2.5mm	3mm	3mm
Application	Indoor
LED Configuration	SMD2121	SMD2121	SMD2121	SMD2121
Pixel Density	160,000dots/㎡	160,000dots/㎡	111,111dots/㎡	111,111dots/㎡
Module size	160X160mm	160X160mm	192X192mm	192X192mm
Module Resolution	64X64dot	64X64dot	64X64dot	64X64dot
Cabinet Size	640X1920X38mm	960X1920X38mm	576X1920X38mm	768X1920X38mm
Cabinet Resolution	256X768dots	384X768dots	192X640dots	256X640dots
Cabinet Weight	35kg	50kg	30kg	40kg
IP Rating ( front/back)	IP40	IP40	IP40	IP40
Brightness Intensity	≥1000cd/㎡	≥1000cd/㎡	≥1000cd/㎡	≥1000cd/㎡
Viewing Angle	140°	140°	140°	140°
View Distance	＞2m	＞2m	＞3m	＞3m
Max./Avg. Power Consumption(W/m²)	900W/300W	1500W/500W	800W/260W	1100W/360W
Refresh Frequency	≥3840HZ	≥3840HZ	≥3840HZ	≥3840HZ
Control Mode	Synchronous display with control PC by DVI
Operation Power	AC100/240 50/60HZ
Operating Condition	- 20℃~+50℃, 10~90% RH
